TLE Series UPS – Scalable (40-150 kW)
ABB TLE Series UPS - Scalable (40-150 kW)
THREE-PHASE STANDALONE UPS SYSTEM
The TLE Series UPS is a robust, high performance 480/277VAC UPS system suitable for a broad range of mission-critical applications including data centers, data closets, healthcare/medical, telecommunications, transportation, commercial buildings, and industrial critical processes.

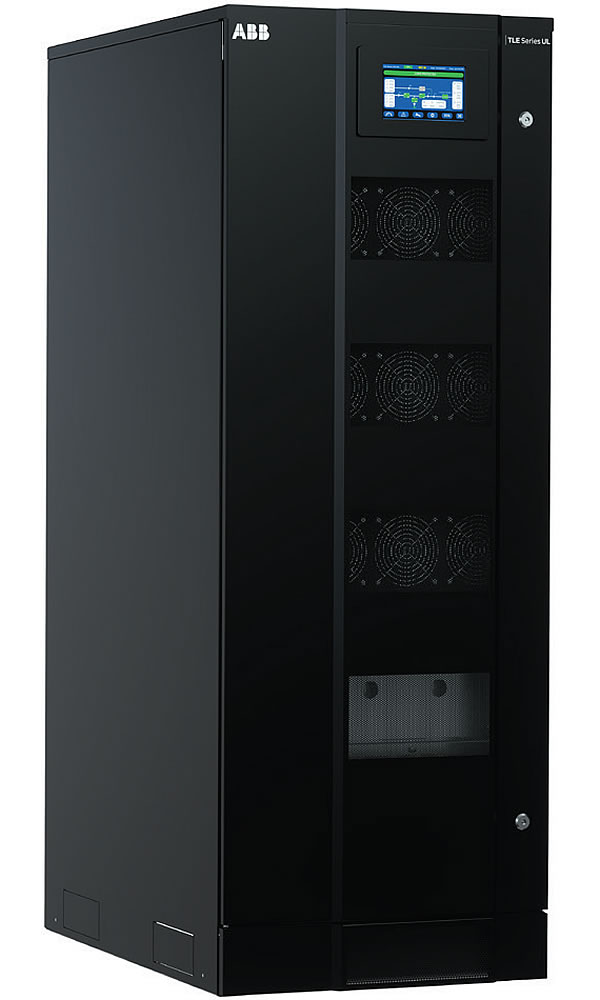

TLE Series UPS 40–150kVA/kW 480VAC
Highly efficient and scalable
- Up to 50% reduced footprint and volume
- Lower rental fees and more room for UPS' power expansion
- 15 years design life
- 10 years performance warranty – lower total cost of ownership
- Up to 80% reduced weight
- Reduced civil engineer overhead – more room for UPS's power expansion
- Up to 3 times higher in power efficiency
- Buy what you need – less battery modules for same power discharge
- Battery management system
- Higher safety protection. Reduced maintenance costs and risks for unexpected outages
Design and performance
The TLE Series UPS uses double conversion technology via a true on-line VFI (voltage frequency independent) design. The IGBT Rectifier provides low input current harmonic distortion and a high input power factor to minimize input feeder sizing. The IGBT Inverter with transformerless output ensures low output voltage distortion and fast transient response to high crest factor loads or step loads.
Multi-mode efficiency
The TLE Series UPS can operate up to 98.9% efficiency when utilized in EcoMode operation. EcoMode continuously monitors the output voltage and frequency and will instantaneously switch to double conversion mode and inverter usage during voltage and/or frequency disturbances to ensure compliance with the ITI (CBEMA) curves for operation on sensitive IT server or other critical loads.
Redundant Parallel Architecture (RPA)
Can be used on TLE Series UPS for up to six (6) modules, for redundancy or capacity means. The RPA system design eliminates single points of failure by using redundant controls and an integrated bypass static switch in each UPS module. The RPA system allows for flexibility in output paralleling cabinet design and usage, including load growth scalability/expansion capabilities.
Site services and remote monitoring
ABB Critical Power Services offers a wide array of site services, including product startup, preventative maintenance and emergency maintenance. ABB's iUPSguard software allows for remote monitoring of key subsystems within the UPS module and battery, allowing for proactive dispatching and problem resolution when emergency repairs are required.

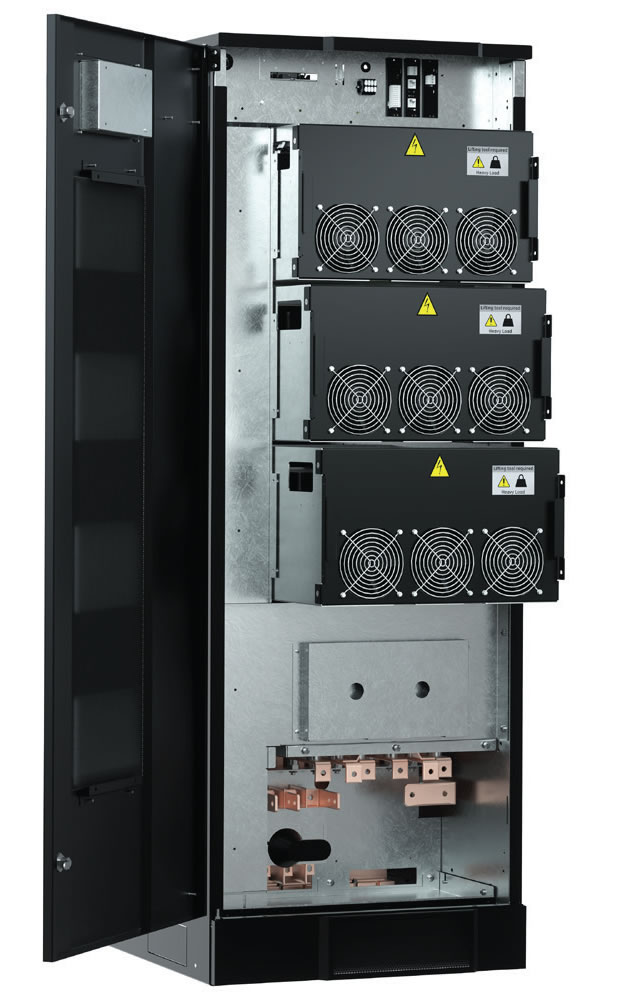

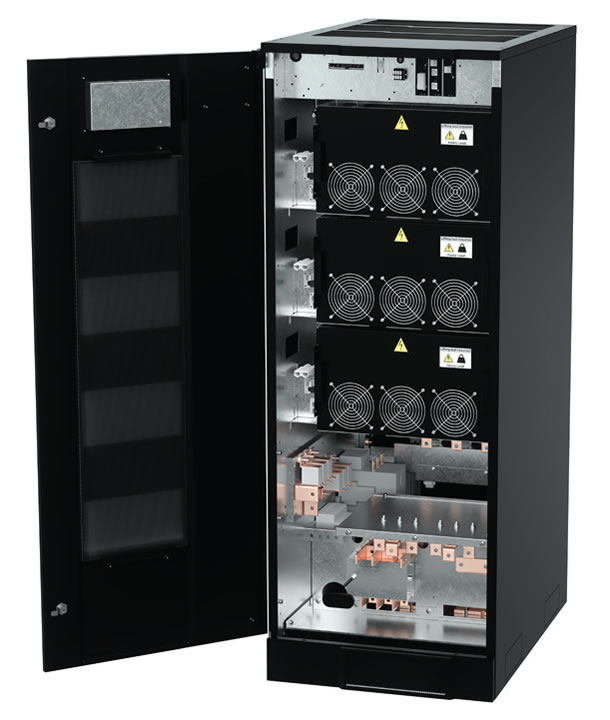

Scalability and slide out construction
The TLE Series UPS scales vertically to up to 150kW, and all sub-assemblies are designed to easily slide out for fast maintenance and service. Now you can replace fans, caps, etc. as needed without having to replace the entire power block.
Distributed control logic
Each module in an RPA system has its own operational controller. Each one continuously communicates with all others in order to manage the entire system like a team.
Sequential soft start
Provides sequential soft start of each module to reduce instantaneous load on input feeders during mains recovery. This helps avoid over-rating of generator and overheating of cable and fuses.
